TOUCH PANEL INTERFACE OVERVIEW


1 2 3
4 5 6 7 8 9 10 11

This page is interactive, it will function as if it were in use. Hover your mouse icon over the password area to see he description. Selecting the icon will flip to see that action.

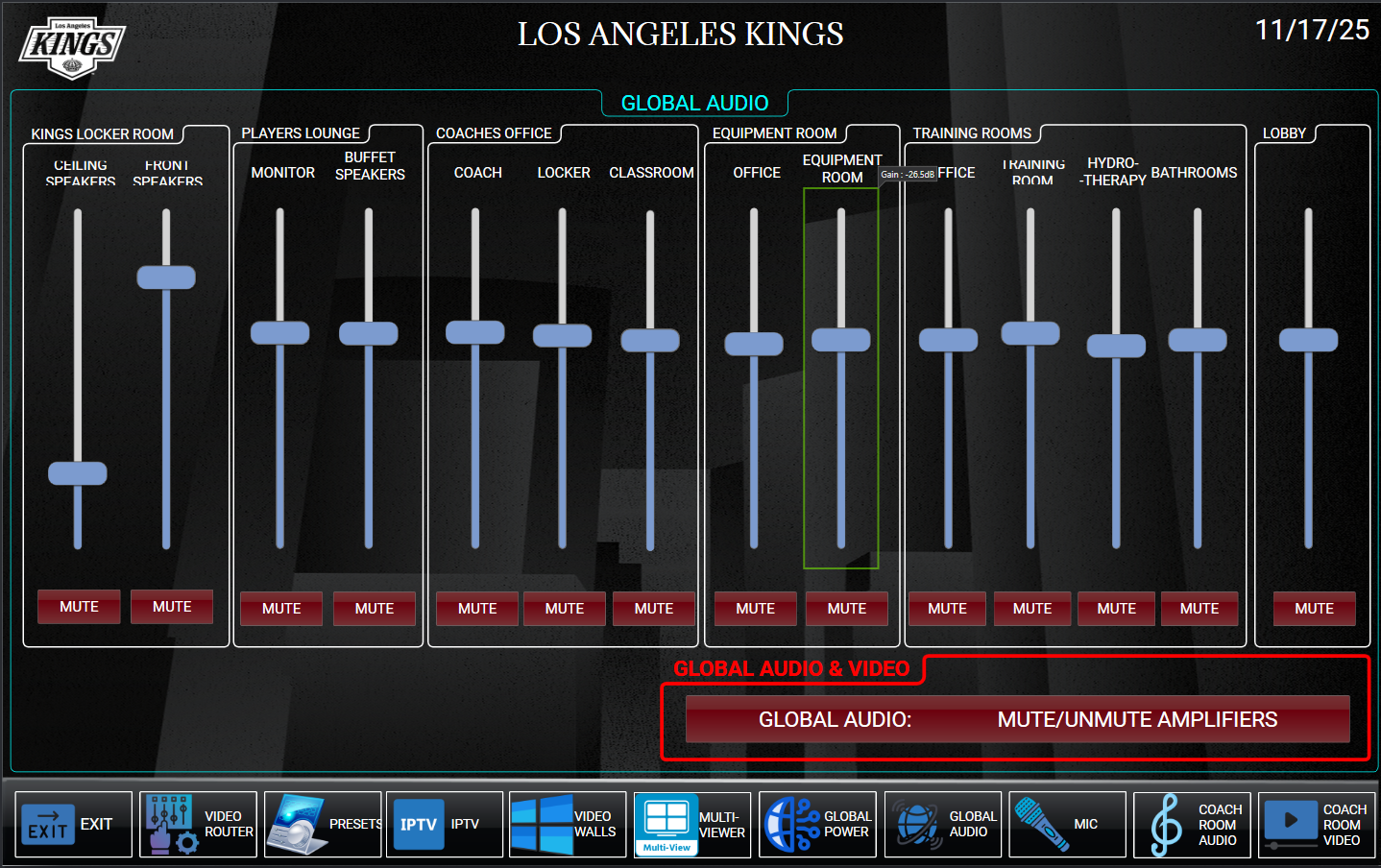

GLOBAL AUDIO

Controls the audio level in each location

GLOBAL AUDIO MUTE: Important, this mutes the Amplifiers, NOT the feeds to the amplifiers. If you have no audio being sent through the facility, you may wish to check this page first.

  1. FADER USE - Mute or Un-Mute the area, adjust fader level to the desired audio level.
